Week 12: Site (plan) Images

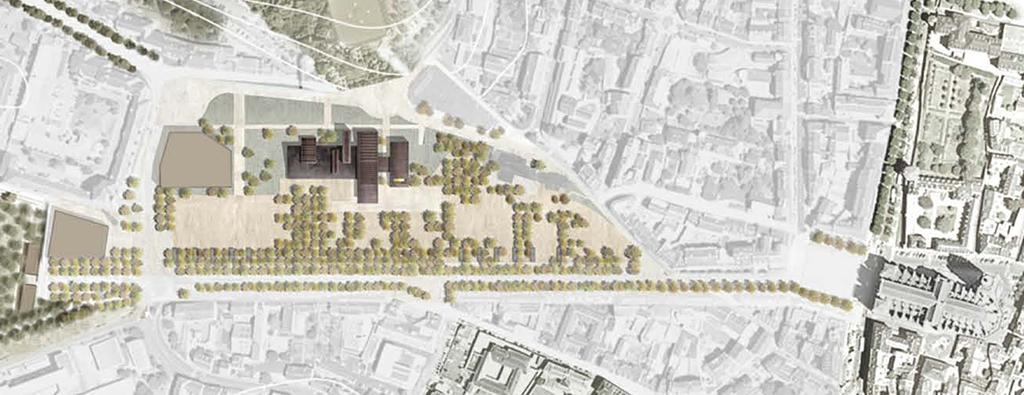

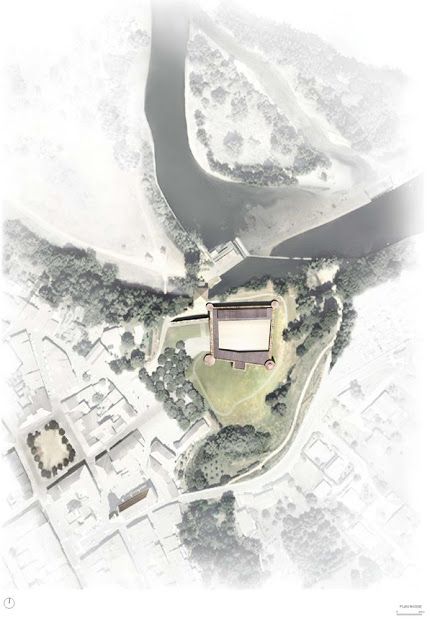

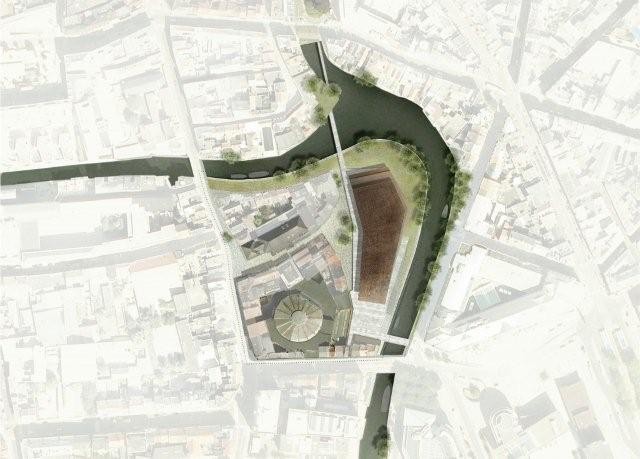

Below are some images made by RCR Arquitectes. You can see some of these images in the books I brought to studio on Wednesday.

We will discuss the construction of Site (plan) Images in more detail on Friday.

Please reference some of the images below.

The Site Images should be printed on 11×17 — their resolution needs to be high enough to be able to zoom into sections of the image and reprint.
